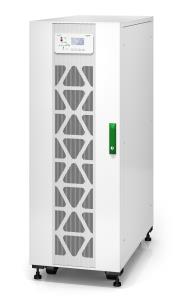

Easy UPS 3S 40 kVA 400 V 3:3 UPS With Internal Batteries - 10 Minutes Runtime
Brand:
APC
Part Number:
E3SUPS40KHB1
Stock:
£9,242.08
(Excl VAT)
£11,090.49
(incl. VAT)
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |
| SmartConnect port | No |
| AC outlet types | Hardwire, Terminal |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| Packaging content | |
| Management card included | No |
| Technical details | |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Sustainability certificates | RoHS |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 400 V |
| Output frequency regulation | 45 - 65 Hz |
| Maximum current | 73 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96% |
| Emergency Power Off (EPO) | Y |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Typical backup time at full load | 10 min |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Safety | IEC 62040-1-1 |
| Certification | CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 9999 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 969 mm |
| Height | 1400 mm |
| Weight | 590 kg |
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 643 kg |
No options for this product
