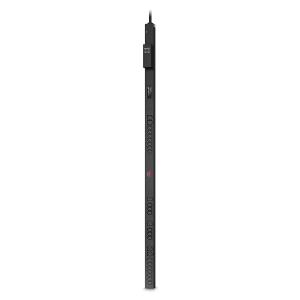

Rack PDU Basic Vertical 220-240V 32A (20) C13 (6) C19
| Introduction | |
|---|---|
| Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price. |
|
| Design | |
| Rack capacity | 0U |
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | IEC 60309 32 A 2P + E |
| AC outlets quantity | 26 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Output voltage | 230 V |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Power protection features | Overload |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 43 mm |
| Height | 1626 mm |
| Dimensions (WxDxH) | 56 x 43 x 1626 mm |
| Weight | 6.18 kg |
| Packaging data | |
| Package width | 226 mm |
| Package depth | 135 mm |
| Package height | 1875 mm |
| Package dimensions (WxDxH) | 226 x 135 x 1875 mm |
| Package weight | 8 kg |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 4481.3674802844 |
| Features | |
| Cable length | 3.05 m |
| Certification | CE, EAC, IRAM, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
