40G MTP/MPO TO 4XLC FAN-OUT OM4 PLENUM-RATED FIBER OPTIC CABLE 4
Brand:
EATON CORPORATION
Part Number:
N845-05M-8L-MG
Stock:
£161.18
(Excl VAT)
£193.41
(incl. VAT)
| Introduction | |
|---|---|

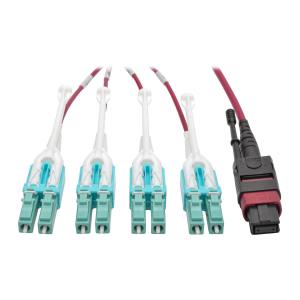

| The five-meter N845-05M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-05M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time. OM4-Rated for 40 Gb Ethernet Applications Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch Designed for high-density connections between 40GBASE-SR4 network equipment Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections Multimode fiber optic fan-out cable supports various multi- and single-fiber connections. Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction Magenta-colored for identification as an OM4 cable MTP/MPO and LC Connectors with Push/Pull Tabs 1 male MTP/MPO and 8 male LC connectors Push/pull tab connectors easy to install and remove with one hand Error-Free Signal Transfer Premium-grade ceramic ferrule for 10 GbE and faster applications Slim, space-saving uniboot design makes cable easier to manage Plenum-rated jacket for connecting in ceilings, walls and ducts Sturdy plastic housing built to last a long time |
|
| Features | |
| Cable length | 5 m |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable type | CMP |
| Fibre optic type | OM4 |
| Product colour | Black, Magenta, Turquoise |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 100 Gbit/s |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332200072 |
| Packaging data | |
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 100 g |
| Logistics data | |
| Master (outer) case width | 154.9 mm |
| Master (outer) case length | 149.9 mm |
| Master (outer) case height | 185.4 mm |
| Master (outer) case gross weight | 1.02 kg |
| Products per master (outer) case | 10 pc(s) |
