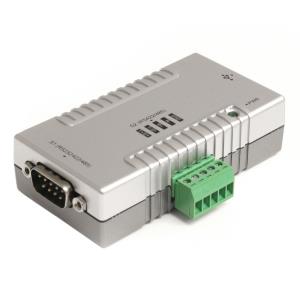

USB To Rs232 2 Port Rs422/ Rs485 Serial Adapter With Com Retention
Brand:
STARTECH.COM
Part Number:
ICUSB2324852
Stock:
£79.79
(Excl VAT)
£95.75
(incl. VAT)
| Introduction | |
|---|---|
| The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations. For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - This single adapter is compatible with any serial device protocol (RS232, RS422, and RS485), and even allows mixing protocols for simultaneous communication over both ports - COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free - USB Powered - no power outlet required, and no cumbersome AC adapter to carry around |
|
| Design | |
| Product colour | Grey |
| LED indicators | Power |
| Certification | CE, FCC |
| Features | |
| Chipset | FTDI - FT2232H |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Data bits | 7,8 |
| Stop bits | 1,2 |
| Parity bit | Even, Mark, N, Odd, Space |
| Flow Control type | N, XON/XOFF |
| Power | |
| Output voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 44.2 mm |
| Depth | 82.3 mm |
| Height | 23.2 mm |
| Weight | 310 g |
| Packaging data | |
| Cables included | USB |
| Manual | Y |
| Quantity per pack | 1 pc(s) |
| Package width | 144 mm |
| Package depth | 208 mm |
| Package height | 40 mm |
| Package weight | 310 g |
| Other features | |
| Compatible operating systems | Windows 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ Server 2008(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Mac 9.8/OS X, Linux 2.4.x; Windows XP Embedded, CE 4.2/ 5.2/ 6.0, PocketPC 2003, Mobile 5, 6 |
| Relative humidity | 5 - 95% |
