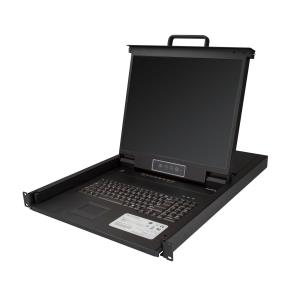

Rackmount KVM Console 8-port - Ps/2 & USB - 1u - 19in Display
Brand:
STARTECH.COM
Part Number:
RKCONS1908K
Stock:
£1,193.99
(Excl VAT)
£1,432.79
(incl. VAT)
| Introduction | |
|---|---|
| Control your server or KVM switch from a centralized LCD KVM drawer This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control. Maximize your IT budget, minimize your hassle This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024. Maximize your screen space This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity. Clutter-free monitoring The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure. The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0 - PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan - INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8" [60.5 cm] to 35" [89 cm] (incl. mounting hardware) |
|
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Pixel pitch | 0.264 x 0.264 mm |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Colour depth | 8 bit |
| Technical details | |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Audio support | N |
| Daisy chain | N |
| Key lock | N |
| IP control | N |
| Number of computers controlled | 8 |
| Sustainability certificates | CE, RoHS, UL ECOLOGO |
| Rack capacity | 1U |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 9 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Built-in touchpad | Y |
| Power | |
| Power consumption (typical) | 21 W |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 483 mm |
| Height | 43 mm |
| Depth | 643 mm |
| Weight | 13.4 kg |
| Mounting depth (min) | 60.5 cm |
| Mounting depth (max) | 89 cm |
| Packaging data | |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 190 mm |
| Package volume | 19000 cm³ |
| Packaging content | |
| Cables included | KVM |
| Screws included | Y |
| Number of screws | 8 |
| Mounting brackets included | Y |
| Cage nuts included | Y |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Y |
| Logistics data | |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 1 pc(s) |
