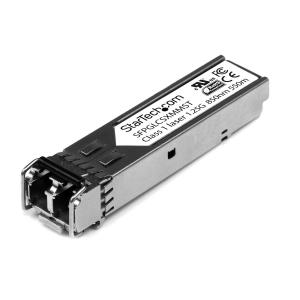

Fiber Transceiver Module Lc 850nm 1000base-sx Multimode Sfp
Brand:
STARTECH.COM
Part Number:
SFPGLCSXMMST
Stock:
£23.93
(Excl VAT)
£28.72
(incl. VAT)
| Introduction | |
|---|---|
| 1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty The SFPGLCSXMMST is a Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft). Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550 m (1804 ft) MTBF: 3,092,408 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): No This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage - 100% compatibility with Cisco GLC-SX-MM guaranteed - StarTech.com SFP modules are backed by a lifetime warranty - Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards |
|
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Y |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | N |
| Wavelength-division multiplexing (WDM) | N |
| Features | |
| Product colour | Silver |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 3381761 h |
| Brand compatibility | Cisco |
| Compatible products | GLC-SX-MM |
| Certification | CE, FCC, UL, REACH |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 16 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 95 mm |
| Package depth | 118 mm |
| Package height | 32 mm |
| Package weight | 95 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 205 mm |
| Products per master (outer) case | 36 pc(s) |
