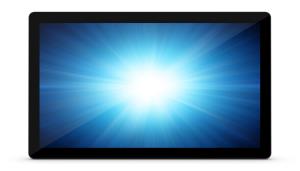

Touch Computer I-series - 21.5in - i3 8100t - 8GB Ram - 128GB SSD - Touchpro Pcap - Win 10
Brand:
Elo Touch Solutions
Part Number:
E850591
Stock:
£1,256.64
(Excl VAT)
£1,507.97
(incl. VAT)
| Introduction | |
|---|---|
| I-Series for Windows Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform-all in a sleek, yet durable fixed tablet form factor. Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited. Endless Versatility The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use. Configure with Elo Edge Connect Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change. Stands & Mounts With a standard VESA mount, we give you the flexibility to mount our products however you want. Windows or Linux. You Choose. Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vProT platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them. Get Peace of Mind With EloCare EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running. |
|
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Y |
| HD type | Full HD |
| LED backlight | Y |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 225 cd/m² |
| Response time | 14 ms |
| Display number of colours | 16.78 million colours |
| Screen shape | Flat |
| Processor | |
| Processor manufacturer | Intel |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8100T |
| Processor family | Intel® Core™ i3 |
| Processor frequency | 3.1 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| 64-bit computing | Y |
| Thermal Design Power (TDP) | 35 W |
| Configurable TDP-down frequency | 2.4 GHz |
| Configurable TDP-down | 25 W |
| PCI Express slots version | 3.0 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | B0 |
| Bus type | DMI3 |
| Processor codename | Coffee Lake |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Processor code | SR3Y8 |
| Tjunction | 82 °C |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Y |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD form factor | M.2 |
| Optical drive type | N |
| Card reader integrated | N |
| Compatible memory cards | Not supported |
| Graphics | |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card | Y |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E91 |
| On-board graphics card 4K support | Y |
| Audio | |
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Camera | |
| Built-in camera | N |
| Network | |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Design | |
| Product colour | Black |
| VESA mounting | Y |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Performance | |
| Product type | All-in-One tablet PC |
| Motherboard chipset | Intel® H310 |
| Trusted Platform Module (TPM) | Y |
| Software | |
| Operating system installed | Windows 10 |
| Processor special features | |
| Intel® Turbo Boost Technology | N |
| Intel® Hyper Threading Technology (Intel® HT Technology) | N |
| Intel® Identity Protection Technology (Intel® IPT) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel® Quick Sync Video Technology | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
| Intel Clear Video Technology | Y |
| Intel® InTru™ 3D Technology | Y |
| Intel® Smart Cache | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel Trusted Execution Technology | N |
| Intel Enhanced Halt State | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel® Secure Key | Y |
| Intel TSX-NI | N |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel® OS Guard | Y |
| Intel Software Guard Extensions (Intel SGX) | Y |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Y |
| Intel 64 | Y |
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | Y |
| Thermal solution specification | PCG 2015A |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Y |
| Intel TSX-NI version | 0.00 |
| Processor ARK ID | 129944 |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Pen | |
| Pen included | N |
| Weight & dimensions | |
| Width (with stand) | 525.9 mm |
| Depth (with stand) | 52.6 mm |
| Height (with stand) | 319.2 mm |
| Weight (with stand) | 5.2 kg |
| Package width | 625 mm |
| Package depth | 196 mm |
| Package height | 437 mm |
| Package weight | 7 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| AC adapter included | Y |
| Quick start guide | Y |
| Other features | |
| 3D | N |
| Detachable display | N |
