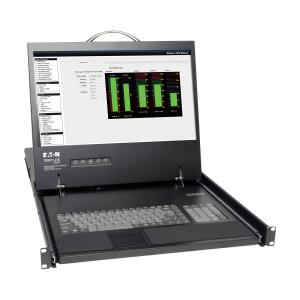

8-PORT CAT5 1U RACK MOUNT CONSOLE
Brand:
EATON CORPORATION
Part Number:
B070-008-19
Stock:
£1,086.05
(Excl VAT)
£1,303.26
(incl. VAT)
| Introduction | |
|---|---|
| Tripp Lite's B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 30.5 m away from the switch. You can switch easily between the 8 ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19" LCD screen supports video resolutions up to 1366 x 768. Add a Tripp Lite B051-000 IP Remote Access Unit and you'll be able to connect to your servers from anywhere in the world. The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Saves Space and Money ? Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer - ideal when rack space is at a premium ? Mounts into 19"-wide rack, 27"-42" deep; can be mounted in 2-post rack with Tripp Lite's B019-000 ? Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use ? Eliminates need to buy costly monitors, keyboards and mice for each computer/server ? Uses inexpensive Cat5e/6/6a Cables ? Low-cost cables lets you locate servers up to 30.5 m from the switch ? Use a plug-and-play Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable ? For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary. Simplifies IT Tasks ? Switch easily between the 8 ports via on-screen display or keyboard hot key commands ? Hot pluggable; add or remove USB computers without having to power down the switch ? Auto-scan mode automatically sequences through all active ports accessible to the user Large 19" LCD ? Extra-wide display makes multitasking easier ? Supports video resolutions up to 1366 x 768 ? DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD Multi-Level Password Security ? Multi-level password security limits access to authorized users (administrator, supervisor or user) ? Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed Expandability and Long-Lasting Reliability ? Control your servers from anywhere in the world over LAN, WAN or the Internet by adding a Tripp Lite B051-000 IP Remote Access Unit ? Compatible with all major operating systems for easy integration into your existing structure ? Firmware is upgradable with included cable and utility ? Heavy-duty steel housing stands up to frequent use ? Occupies just 1U of space in a rack-mountable drawer ? Low-cost Cat5 cabling allows longer distances, reduces cable clutter ? 19" LCD screen supports video resolutions up to 1366 x 768 ? Simplifies IT tasks with easy switching between all 8 ports System Requirements ? Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports ? User-supplied Cat 5e/6/6a cabling ? B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server ? For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary. ? Compatible with all major operating systems ? Power consumption: 120V, 60Hz, 30W Package Includes ? B070-008-19 1U rackmount console KVM switch with 19" LCD ? C13 to 5-15P power cord ? Serial firmware upgrade cable ? Jumper cable to connect KVM console ports to integrated console ports ? Rackmount hardware ? CD with owner's manual |
|
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| On Screen Display (OSD) | Y |
| Technical details | |
| Height (in Rack Units) | 1 |
| Weight (imperial) | 16.3 kg (36 lbs) |
| Product colour | Black |
| Built-in KVM switch | Y |
| KVM switch ports quantity | 8 |
| Operating temperature (T-T) | -40 - 158 °F |
| Relative humidity | 0 - 80% |
| Sustainability certificates | RoHS |
| Country of origin | Taiwan |
| Ports & interfaces | |
| Interface | VGA, USB, PS/2 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Certificates | |
| Certification | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Weight & dimensions | |
| Width | 449.3 mm |
| Height | 43.4 mm |
| Depth | 722.4 mm |
| Weight | 14 kg |
| Packaging data | |
| Package weight | 18.4 kg |
| Package width | 595.1 mm |
| Package depth | 833.9 mm |
| Package height | 160 mm |
| Logistics data | |
| Master (outer) case width | 595.1 mm |
| Master (outer) case length | 833.9 mm |
| Master (outer) case height | 160 mm |
| Master (outer) case gross weight | 18.4 kg |
| Products per master (outer) case | 1 pc(s) |
