COPPER BUS GROUNDING BAR FOR 24U AND 25U RACKS
Brand:
EATON CORPORATION
Part Number:
SRGROUND25
Stock:
£91.34
(Excl VAT)
£109.61
(incl. VAT)
| Introduction | |
|---|---|

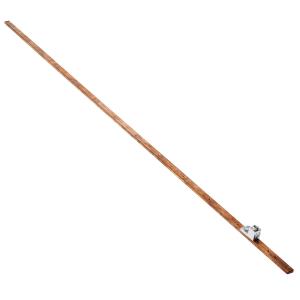

| Provides Convenient Ground Contact for Your Rack-Mounted Equipment This SmartRack® grounding bar is a thin strip of heavy-gauge solid copper that attaches to any EIA-standard 24U or 25U rack enclosure or open frame rack. Every other U space has a drilled and tapped hole to allow a ground wire jumper to be installed, providing convenient ground contact for standard rack equipment. The jumper then bridges to individual rack components, with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment. Easy to Install with All Hardware Included You can mount the SRGROUND25 in any EIA-standard 24U or 25U rack enclosure or open frame rack. Either screw it into a rack enclosure using the included mounting hardware, or install it in an open frame rack with the included toolless mounting buttons. This copper grounding bar is ideal for large data centers that contain ground-sensitive equipment. |
|
| Features | |
| Type | Grounding bar |
| Product colour | Copper |
| Housing material | Copper |
| Rack capacity | 25U |
| Country of origin | China |
| Weight & dimensions | |
| Width | 15.9 mm |
| Depth | 6.4 mm |
| Height | 1148.1 mm |
| Weight | 1.81 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 85.1 mm |
| Package depth | 59.9 mm |
| Package height | 1240 mm |
| Package weight | 1.36 kg |
| Packaging content | |
| Mounting kit | Y |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332241471 |
| Logistics data | |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 1260.1 mm |
| Master (outer) case height | 140 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7409.19.1000 |
