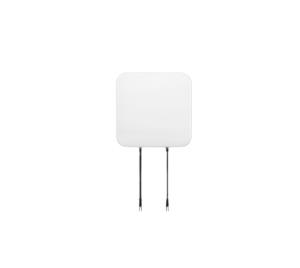

Mg21e Patch Antenna
Brand:
CISCO
Part Number:
MA-ANT-C1-B
Stock:
£326.10
(Excl VAT)
£391.33
(incl. VAT)
| Introduction | |
|---|---|
| The Cellular Patch Antenna (MA-ANT-C1-B) is ideal for situations that require higher directional gain towards a cellular tower. When mounted high up on a pole for a clearer line of site toward a cellular tower, the MG cellular gateway will have higher signal quality and power. |
|
| Performance | |
| Frequency band | 0.7/2.69 GHz |
| Gain | 4 / 7 dBi |
| Horizontal beam width | 60° |
| Vertical beam width | 60° |
| Antenna gain level (max) | 2690 dBi |
| Features | |
| Antenna connector type | RP-SMA |
| Cable length | 1 m |
| Mounting | Wall/Pole |
| Compatible products | MG21E |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 46 mm |
| Height | 220 mm |
| Weight | 550 g |
