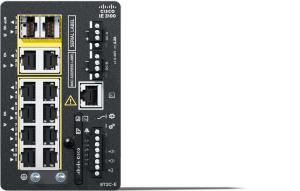

Ie3100 W/8ge Copper 2ge Combo Fixed Sys Network Essentials
Brand:
CISCO
Part Number:
IE-3100-8T2C-E
Stock:
£1,021.08
(Excl VAT)
£1,225.29
(incl. VAT)
| Introduction | |
|---|---|
| Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces. These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models. The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. |
|
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | SD |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| MAC address table | 8000 entries |
| Security | |
| DHCP features | DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| IGMP entries | 512 |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Performance | |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 76.2 mm |
| Depth | 110 mm |
| Height | 127 mm |
| Weight | 860 g |
