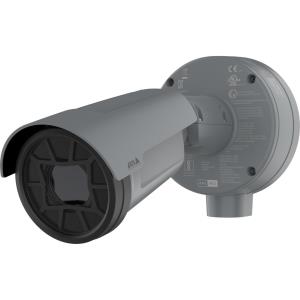

Q1961-xte 7 Mm 30 Fps Explosion-protected Thermal Camera
Brand:
AXIS
Part Number:
02535-001
Stock:
£6,550.72
(Excl VAT)
£7,860.87
(incl. VAT)
| Introduction | |
|---|---|
| AXIS Q1961-XTE Explosion-Protected Thermal Camera Certified for Zone and Division 2 hazardous locations, this explosion-protected, thermometric camera can remotely monitor temperatures and trigger temperature-based events. So, you can avoid unwanted downtime in production and plan for predictive maintenance. What’s the temperature? Thermometric! AXIS Q1961-XTE can measure temperatures from -40 °C to 350 °C (-40 °F to 660 °F).* It will send a notification if the temperature exceeds or falls below a set threshold which could indicate that the equipment is getting close to overheating, or there’s a leak in the system. It will also send a notification if the temperature increases or decreases too rapidly. This thermal camera supports up to 10 configurable polygonal detection areas. And spot temperature reading lets you see the exact temperature in specific areas. Furthermore, it can be integrated with process control systems, so you can create a data-driven sensory network and gain deeper insights into your processes. Smart and accurate This thermometric camera can remotely monitor temperatures, so you don’t need to be on site to know if your equipment is getting close to overheating. Smart filtering will disregard uninteresting objects such as the warm exhausts of passing work vehicles, resulting in fewer false notifications. Thanks to edge-to-edge technology, you can connect, for instance, a network speaker to enable audio alarms. And through metadata, you’ll have access to temperature statistics. This thermometric camera also offers support for powerful analytics. Cost-efficient coverage in hazardous areas AXIS Q1961-XTE is designed and certified for Zone and Division 2 explosion-prone applications (Zone 2,21 and Class I/II/III Division 2 according to ATEX/IECEx/cULus). This cost-efficient camera is compact and lightweight, and it supports PoE for easy and flexible installation. Featuring a 7 mm lens, it offers wide area coverage. Electronic image stabilization (EIS) provides smooth video even in scenes with vibrations. Furthermore, this sturdy camera is IP66- and IP67-rated for protection against the ingress of water and dust. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. |
|
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Number of languages | 19 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Thermal sensitivity (NETD) | 40 mK |
| Design | |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, Grey |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Lens viewing angle, horizontal | 55° |
| Camera pixel size | 17 µm |
| Image sensor | |
| Effective sensor resolution (thermal module) | 384 x 288 pixels |
| Sensor type | Microbolometer |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.18 |
| Closest focusing distance | 1.3 m |
| Infrared spectral band | 8 - 14 µm |
| Video | |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 1-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Sample rate | 48 kHz |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Temperature sensor | Yes |
| Temperature measurement range | -40 - 350 °C |
| Temperature measurement accuracy | 5 °C |
| Fire detection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | EAP-TLS, MSCHAPv2, PEAP, TLS |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 4.3 W |
| Power consumption (max) | 12.95 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 152 mm |
| Depth | 292 mm |
| Height | 152 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Doesn't contain | CFR, PVC/BFR |
| Compliance certificates | REACH, RoHS |
