M3068-p Network Camera
Brand:
AXIS
Part Number:
01732-001
Stock:
£609.53
(Excl VAT)
£731.43
(incl. VAT)
| Introduction | |
|---|---|

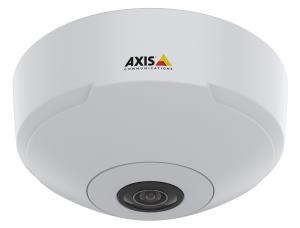

| AXIS M3068-P Network camera Are you looking for an attractively priced mini-dome that ensures wide situational awareness indoors? AXIS M3068-P delivers clear 360° panoramic overviews with no blind spots. See it all - day and night Featuring Forensic WDR, AXIS M3068-P delivers clarity when there's both dark and light areas in the scene and outstanding 360° panoramic views at up to 15 fps. Plus, day/night functionality provides high quality black and white video with improved sensitivity in poor light. In smaller facilities it's possible to monitor the entire area with just one camera. Not only does the camera give you a complete and sharp overview, but it also allows you to zoom in and analyze live or recorded video footage. Whether an incident occurred in the middle of the space, or in a far corner, thanks to de-warping functionality you can always see distortion-free views of the specific area. AXIS M3068-P can deliver a variety of de-warped views, and you can fetch multiple, individually configured video streams simultaneously from the camera. Sleek, sustainable design This ultra-compact, PVC-free camera is made from 71% recycled plastics and is designed to look discreet wherever it's installed. It comes with a white casing that features a sleek, no-dome design. There's also optional casings available, for instance a black casing, a smoke detector casing to help disguise the camera as well as a vandal-resistant casing for added security and peace of mind. Additionally, the camera's casing can be repainted to blend in seamlessly with specific surroundings. Great value for money This attractively priced fixed mini-dome helps ensure smooth installation and keeps costs low. It's delivered factory-focused out of the box, so no focusing is required. And, thanks to digital roll functionality you can remotely adjust the rotation of the camera overview- no need to do it manually on the camera. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality. |
|
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Y |
| PTZ modes | Digital PTZ |
| Tour recording | Y |
| Preset points | Y |
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Infrared (IR) cut-off filter | Y |
| Certification | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IEN 55032 Class B, EN 55035, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-3(A)/NMB-3(A), VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KC KN35GMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT, Syslog, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 6, NIST SP500-267 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Aluminium |
| Camera | |
| Minimum illumination | 0.06 lx |
| Field of view (FOV) angle | 360° |
| Viewing angle, horizontal | 185° |
| Viewing angle, vertical | 185° |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Progressive scan | Y |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.8 |
| Fixed focal length | 1.65 mm |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 12 MP |
| Video formats supported | AVC,H.264,H.265,HEVC,MPEG4 |
| Supported graphics resolutions | 2048 x 1536 (QXGA),2560 x 1920,2880 x 2880 |
| Frame rate | 30 fps |
| Video streaming | Y |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Y |
| Text caption overlay | Y |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 2-way |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT, Syslog |
| Quality of Service (QoS) support | Y |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Y |
| Video motion detection | Y |
| Active tampering alarm | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Alert notification type | |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 3.7 W |
| Power consumption (max) | 6.49 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 101 mm |
| Depth | 101 mm |
| Height | 49 mm |
| Weight | 300 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Y |
