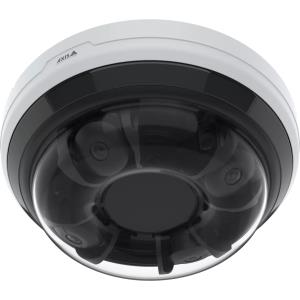

P3747-plve Panoramic Camera
Brand:
AXIS
Part Number:
02897-001
Stock:
£1,969.24
(Excl VAT)
£2,363.09
(incl. VAT)
| Introduction | |
|---|---|
| AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration. Wide area surveillance with high-quality overview—24/7 Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles. Brilliant design for cost-effective installation This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality. Powerful with strong security This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations. |
|
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Preset points | Yes |
| Maximum operating distance | 20 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Built-in light | Yes |
| Number of languages | 19 |
| Languages support | Arabic, Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| LED indicators | Activity |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Camera tilt control | Yes |
| Minimum illumination | 0.1 lx |
| Horizontal field of view (thermal module) | 360° |
| Lens viewing angle, horizontal | 360° |
| Lens viewing angle, vertical | 71.5 - 30.0° |
| Camera pixel size | 2 µm |
| Camera shutter speed | 1/19500 - 1 s |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.78 mm (1 / 2.78") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 3 |
| Focal length range | 3.18 - 7.42 mm |
| Fixed focus | Yes |
| Focus | Motorized |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | M-JPEG, MPEG, MPEG4 |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 2560 x 1440, 2592 x 1944 |
| Video recording | Yes |
| Frame rate | 20 fps |
| Video intelligence analytic | Yes |
| Video streaming | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Audio input channels | 2 channels |
| Audio output channels | 2 channels |
| Audio formats supported | RTSP |
| Frequency range | 50 - 60 Hz |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Number of simultaneous live view channels | 4 channels |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | 256-bit AES-XTS, FIPS 140-2, HTTPS, SNMP |
| HTTPS encryption | Yes |
| Alert notification type | |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Motion sensor | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 10.8 W |
| Power consumption (max) | 23.7 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 141 mm |
| Depth | 220 mm |
| Height | 75 mm |
| Weight | 3 kg |
| Sustainability | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL |
| Features | |
| License plate recognition | Yes |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Memory card included | Yes |
| Manual | Yes |
| Other features | |
| Doesn't contain | BFR, CFR, PVC |
| Warranty period | 5 year(s) |
