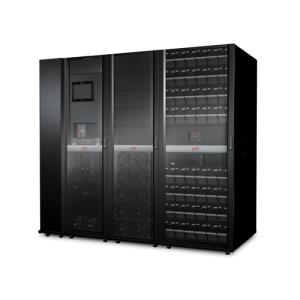

Symmetra PX 100kW Scalable to 250kW with Maintenance Bypass Left & Distribution
Brand:
APC
Part Number:
SY100K250DL-PD
Stock:
£74,081.80
(Excl VAT)
£88,898.17
(incl. VAT)
| Introduction | |
|---|---|
| Symmetra PX 100kW Scalable to 250kW with Left Mounted Maintenance Bypass and Distribution InfraStruXure Central compatible Enables centralized management via APC InfraStruXureŽ Central. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Modular design Increases adaptability with an open architecture configurable to any IT environment. Modular design Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system. Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. SmartSlot Customize UPS capabilities with management cards. Hot-swappable intelligence modules Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Configurable for N+1 internal redundancy Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery modules connected in parallel Delivers higher availability through redundant batteries. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. |
|
| Features | |
| Output power capacity | 100 kVA |
| Output power | 100000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Y |
| Battery | |
| Battery recharge time | 3.50 h |
| Hot-swap battery | Y |
| Design | |
| Product colour | Black |
| Certification | cUL Listed,CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,UL Listed,VFI-SS-111 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 2632.7 kg |
| Other features | |
| Battery type | VRLA |
| Interface | Smart-Slot |
| Output connections | 1x Hard Wire 4-wire (3PH + G) 1x Hard Wire 5-wire (3PH + N + G) |
| Input connection type | Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 2350 x 1070 x 1991 mm |
| Package dimensions (WxDxH) | 2990 x 1270 x 2150 mm |
