Dry Contact I/O Card, Monitor External UPS Environmental Sensors, Output Relays, And Input Contac
| Introduction | |
|---|---|

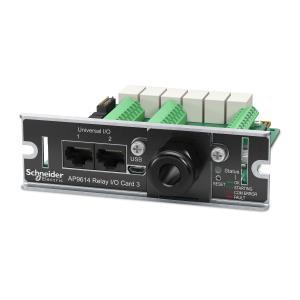

| The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events. | |
| Features | |
| Product type | Relay card |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 128 mm |
| Height | 38 mm |
| Weight | 200 g |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 238 mm |
| Package height | 51 mm |
| Package weight | 440 g |
No options for this product
