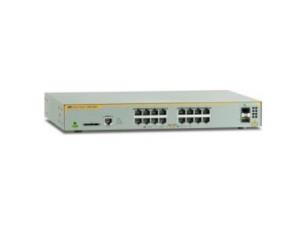

L2+ managed switch 16 x 10/100/1000Mbps2 x SFP uplink slots 1 Fixed AC power supply EU Power cord
Brand:
ALLIED TELESIS
Part Number:
AT-X230-18GT-50
Stock:
£647.21
(Excl VAT)
£776.65
(incl. VAT)
| Introduction | |
|---|---|
| The Allied Telesis x230-18GT features 16 x 10/100/1000T ports with 2 SFP Gigabit uplink ports. A full feature-set and compact design makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance. | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| ARP inspection | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 2 |
| Console port | RJ-45 |
| Compatible memory cards | SD,SDHC |
| Network | |
| Networking standards | IEEE 802.1ad,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Stacked VLAN,Private VLAN,Tagged VLAN |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X,1000BASE-LX,1000BASE-SX,1000BASE-ZX |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| Throughput | 26.8 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP server,DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | 3DES,802.1x RADIUS,AES,DES,HTTPS,MD5,RSA,SHA-1,SHA-2,SSH,SSH-2,SSL/TLS |
| MAC address filtering | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Multicast features | |
| Multicast support | Y |
| Protocols | |
| Management protocols | SNMP, Telnet |
| Supported network protocols | IPv4 / IPv6 |
| Design | |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Y |
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 29 dB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 18 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 61 BTU/h |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
